As China USC Ultrasonic Dry Cleaner Manufacturers and USC Ultrasonic Dry Cleaner Suppliers, Kunshan Shifuda Automation Technology Co., Ltd. (Anhui Shifuda Automation Technology Co., Ltd.) is a modern enterprise integrating R&D, manufacturing, sales, and technical services. It is a relatively competitive equipment supplier in the domestic automation field.
1.Professional R&D, production, sales, ultrasonic plastic welding machines, non-standard automation, hot melt machines, testing equipment, automated assembly, tooling fixtures, molds and other machinery and equipment.
2.Our company mainly targets the plastic welding automation industry. The processes are as follows (ultrasonic welding process, hot melt process, hot plate process, hot riveting process, high frequency welding process, high frequency welding process, eddy current process, etc.)
3.Our company also has a lot of R&D equipment in the water treatment industry, including DTRO diaphragm welding, MBR flat membrane welding, and tubular membrane welding.
4.Logistics industry, (post-processing equipment for hoarding boxes, hollow panels, post-processing equipment for turnover boxes)
5.Medical industry, (blood collection needles, cover pockets, negative pressure drainage bags, peripheral blood collection needles, infusion tubes, scalp needles, retention needles, heparin caps, etc., multiple automated assembly and welding equipment)
Our company has in-depth research in the automotive field, logistics field, medical field, toys, electronics and other fields.
The company's main service industries: automotive, medical, environmental protection, cosmetics, electronics, etc. The core technical capabilities include automated welding equipment, post-processing of hollow board enclosures, post-processing equipment for automobile enclosures, and non-standard automation equipment for medical device products. Design and manufacturing, specializing in providing welding equipment for medical device products, making significant contributions to the industry. We have multiple patents on ultrafiltration, MBR flat membrane, DTRO membrane and other water treatment equipment.
We have established a complete customer service system and have a well-trained and skilled technical service team to serve customers, including R&D and pre-manufacturing technical solution customization, equipment installation and commissioning, technical training and 24-hour after-sales technology Support Services.

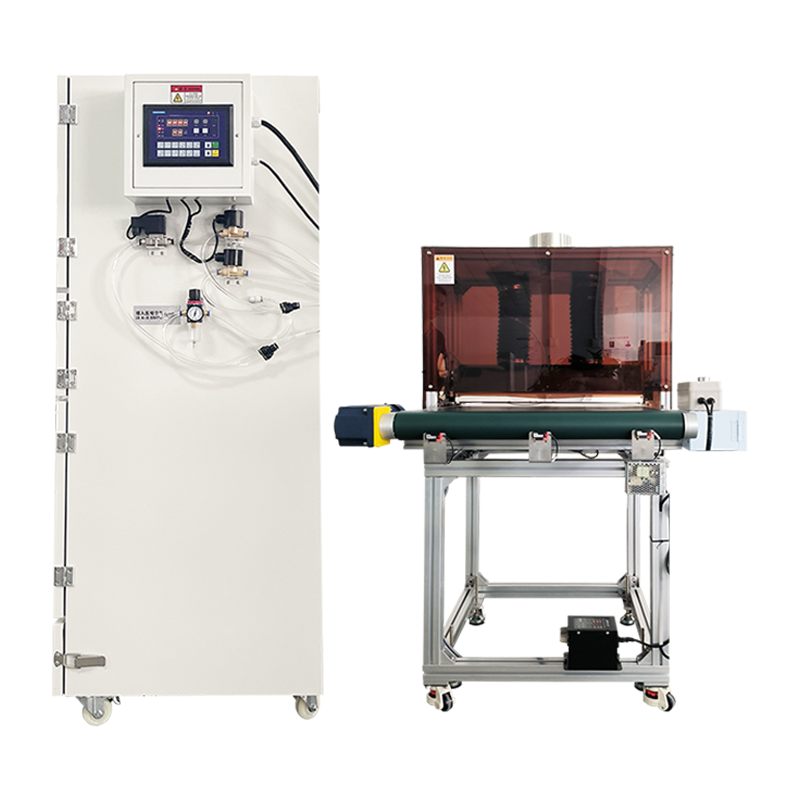

The ultrasonic cleaning head houses an ultrasonic generation chamber and dual vacuum adsorption chambers. Clean compressed air drives the ultrasonic generator, causing micron-scale particles on glass, panel, or precision workpiece surfaces to overcome their own adhesion force and detach through lifting, sliding, and rolling motion — single or combined — before being instantly captured by the vacuum chamber. Cleaning is fully non-contact, leaving no scratches or wear on the treated surface.

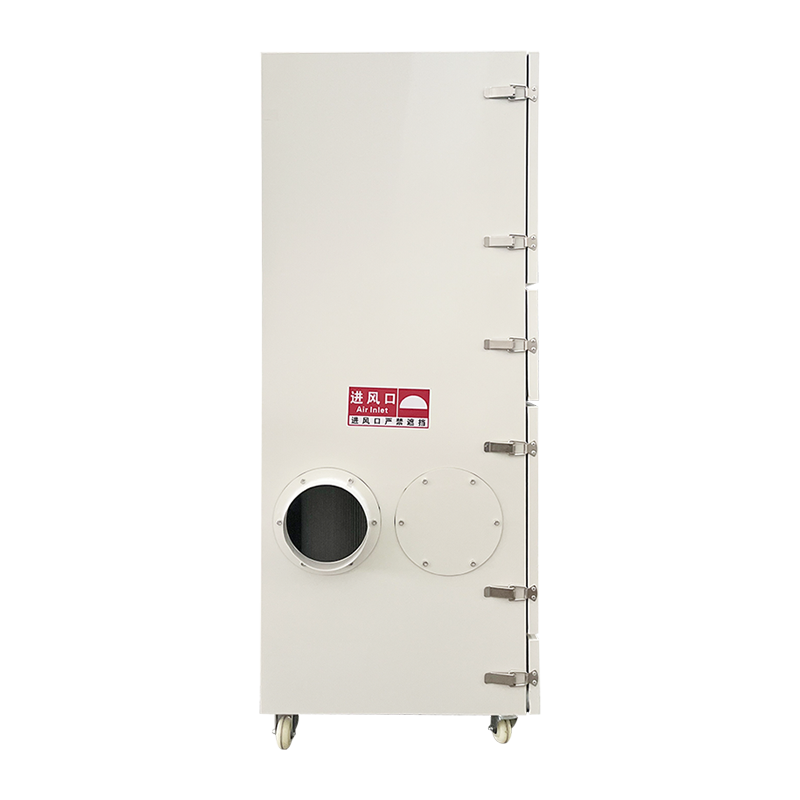

The system runs on a closed-loop internal air circuit. A high-pressure blower delivers clean air through a high-efficiency filter stage, while a medium-efficiency filter stage recovers dislodged dust on the return path. No outside air is introduced at any point, so the airflow balance of a cleanroom is never disturbed and secondary contamination is avoided — suitable for continuous use on Class 1000 and cleaner production lines.

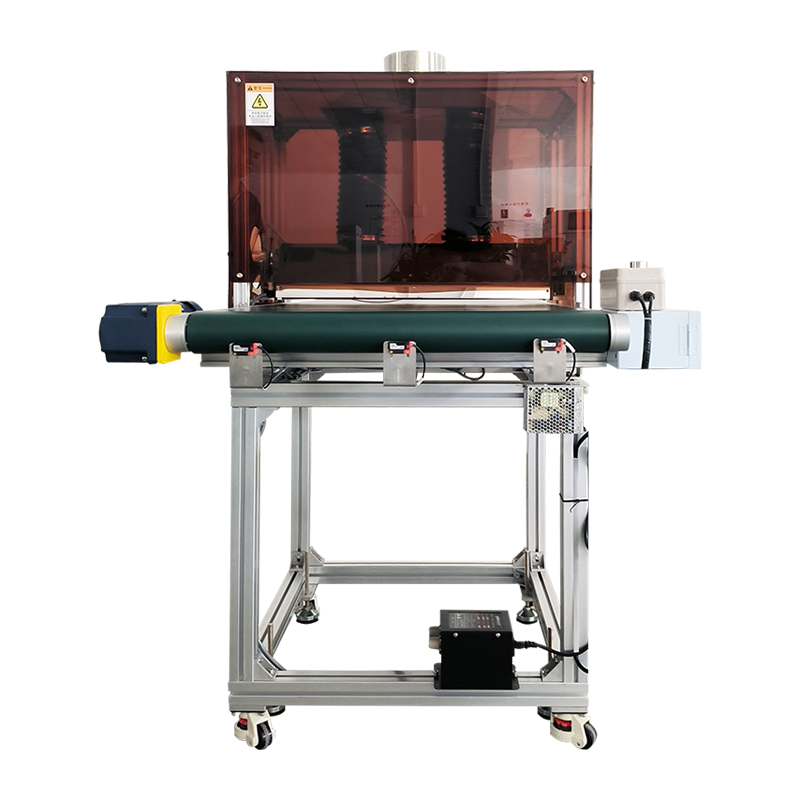

The cleaning head is compact, with duct outlets configurable to face up, sideways, or down, and the effective treatment width can be customized to match the workpiece size. Tubing between the head and the main cabinet can run up to 15 meters, allowing easy retrofit ahead of existing cutting, laminating, or inspection stations without major line modification.

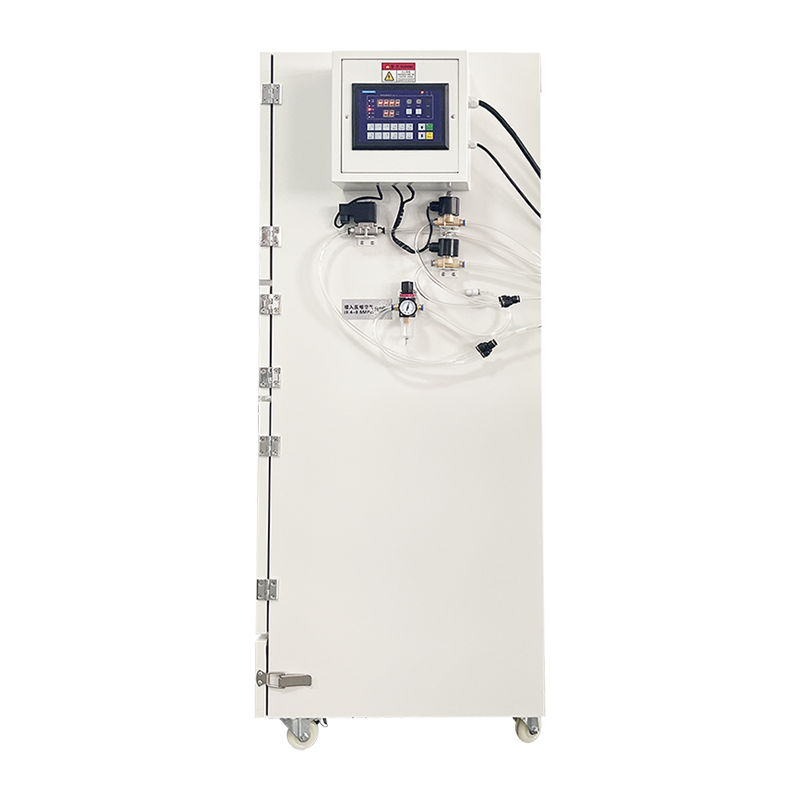

A touchscreen and PLC control system provide temperature feedback, air-pressure feedback, ultrasonic frequency monitoring, and instant high/low-frequency switching, with the ability to link to incoming-material signals for automatic standby and run states. Reserved Siemens S7 and Modbus TCP communication interfaces support MES data upload and remote management.
The ultrasonic generator has no wearing parts and does not degrade over time, requiring no routine maintenance. Built-in medium- and high-efficiency filter stages, paired with differential-pressure alarms and a maintenance countdown reminder, keep upkeep simple. Typical applications include LCD panel and touch-glass processing, optical lens manufacturing, acrylic/organic glass processing, automotive component production, laser cutting, and precision welding stations — anywhere surface cleanliness matters and conventional air-blow or contact cleaning risks damage or contamination.
Key specifications at a glance:
Effective cleaning length: 0–70mm
Working air pressure: 8–16KPa
Cleaning speed: 0–300mm/s (100mm/s or below recommended)
Cleaning efficiency: 97% for 3μm particles, 98% for 6μm particles (tested on white glass, 50mm/s, 2mm height)
Outlet air temperature: <45°C
Noise level: <80 dB
Operating voltage: 3-phase 380V 50/60Hz (3-phase 220V optional)
