Home / Products / Water Treatment Membrane Filtration Equipment / MBR flat sheet membrane welding machine

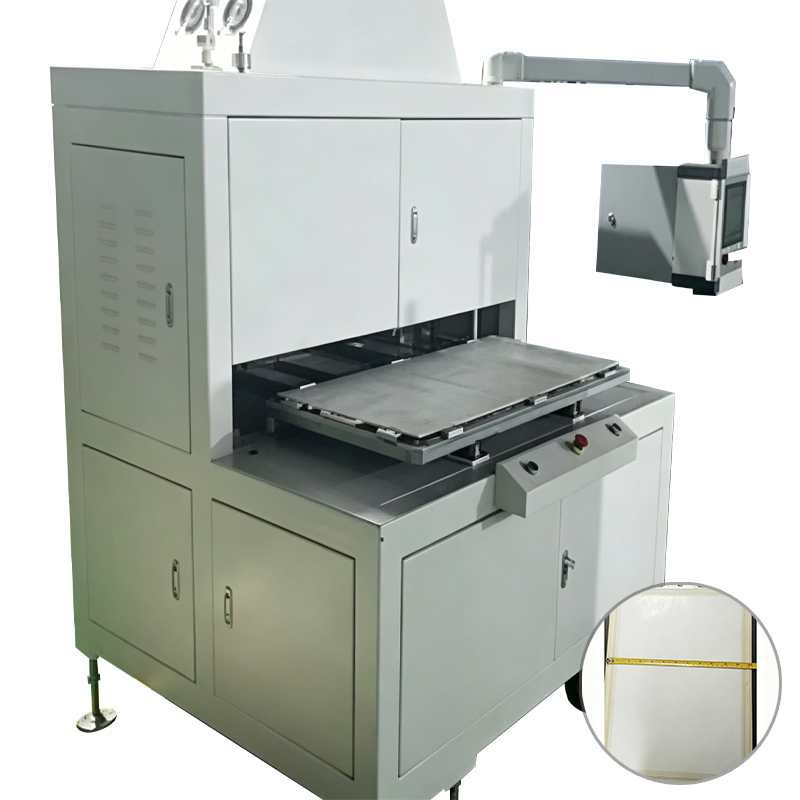

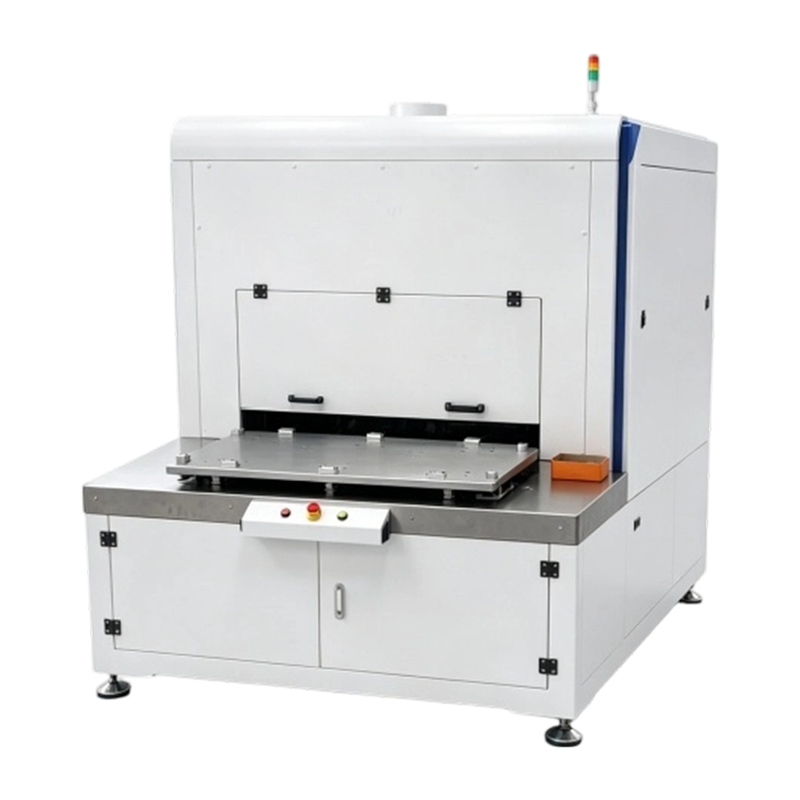

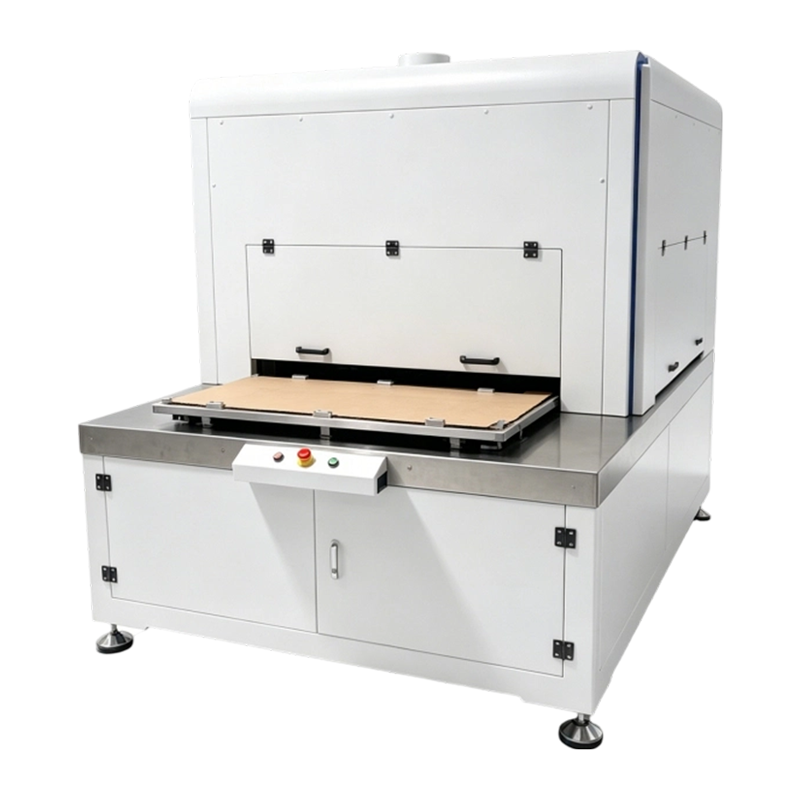

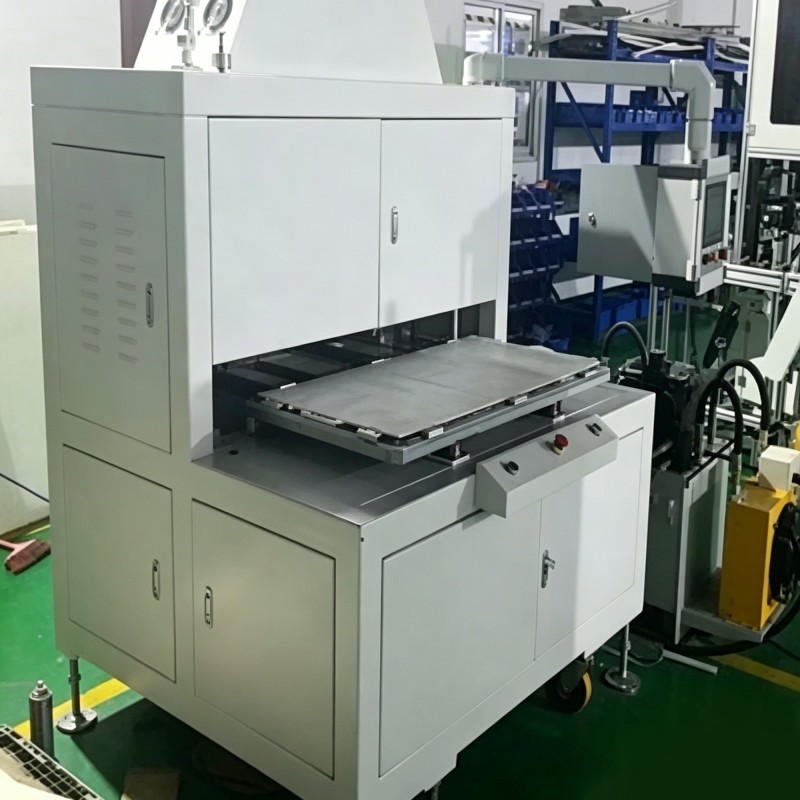

  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine
  • MBR flat sheet membrane welding machine

Specifications

Compatible Membrane Area

 0.2~1.8㎡ (0.5/0.8/1.0/1.2/1.5㎡ standard, custom available)

Full Welding Cycle

 ≤40s per side, ≤50s for double-sided finished product

Drive System

 Dual hydraulic linkage + pneumatic automatic sliding table

Power Supply

 380V 3-phase 50Hz, total heating power 8.5KW

Air Requirement

 0.5–0.7MPa, air consumption 0.45m³/min

Temperature Control

 Multi-section independent heating, ±0.5℃ accuracy, 0–280℃ adjustable

Overall Dimension

 2180×1450×1920mm

Machine Weight

 About 1650kg

Operator

 1 operator, dual-button safety start

Functions

 Auto counting, fault alarm, parameter memory, safety light curtain

Qualified Rate

 ≥98.5%, leak-proof weld without membrane peeling

Kunshan Shifuda Automation Technology Co., Ltd.
About Us
KUNSHAN SHI FU DA AUTOMATION
TECHNOLOGY CO.,LTD.

Kunshan Shifuda Automation Technology Co., Ltd. (Anhui Shifuda Automation Technology Co., Ltd.) is a modern enterprise integrating R&D, manufacturing, sales, and technical services. It is a relatively competitive equipment supplier in the domestic automation field.

1.Professional R&D, production, sales, ultrasonic plastic welding machines, non-standard automation, hot melt machines, testing equipment, automated assembly, tooling fixtures, molds and other machinery and equipment.

2.Our company mainly targets the plastic welding automation industry. The processes are as follows (ultrasonic welding process, hot melt process, hot plate process, hot riveting process, high frequency welding process, high frequency welding process, eddy current process, etc.)

3.Our company also has a lot of R&D equipment in the water treatment industry, including DTRO diaphragm welding, MBR flat membrane welding, and tubular membrane welding.

4.Logistics industry, (post-processing equipment for hoarding boxes, hollow panels, post-processing equipment for turnover boxes)

5.Medical industry, (blood collection needles, cover pockets, negative pressure drainage bags, peripheral blood collection needles, infusion tubes, scalp needles, retention needles, heparin caps, etc., multiple automated assembly and welding equipment)

Our company has in-depth research in the automotive field, logistics field, medical field, toys, electronics and other fields.

The company's main service industries: automotive, medical, environmental protection, cosmetics, electronics, etc. The core technical capabilities include automated welding equipment, post-processing of hollow board enclosures, post-processing equipment for automobile enclosures, and non-standard automation equipment for medical device products. Design and manufacturing, specializing in providing welding equipment for medical device products, making significant contributions to the industry. We have multiple patents on ultrafiltration, MBR flat membrane, DTRO membrane and other water treatment equipment.

We have established a complete customer service system and have a well-trained and skilled technical service team to serve customers, including R&D and pre-manufacturing technical solution customization, equipment installation and commissioning, technical training and 24-hour after-sales technology Support Services.
